Combination Tri-Sliding Room With Roof Light & Store, 5927

This fantastic tri-sliding combination room has our latest Em-Glaze rooflight, integrated cupboards, a toilet and garden storage. The entire project had to be completed going through the house as no side access was available.

Case study project portfolio > Garden Rooms & Offices > Tri-sliding Combination Room with Rooflight, Toilet & Store, 5927

Section menu

The Project

We designed and installed this combination garden room for a family in London. This contemporary garden room provides them with extra space to relax in, play and entertain.

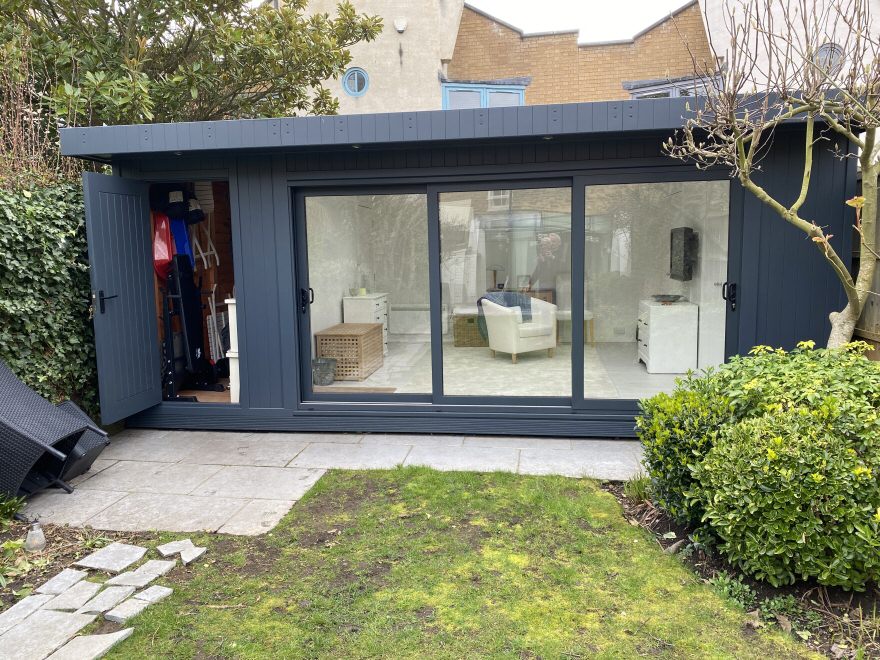

The room measures 5.7m x 4m with a storeroom. Special features include a separate built-in cassette toilet, cupboard space where all lounge items are stored, a wall-mounted TV, tri-sliding aluminium doors and colour matched windows.

The building also includes MTX cladding and an Em-Glaze rooflight. The beautifully decorated insulated garden room can be used all year round.

The Work

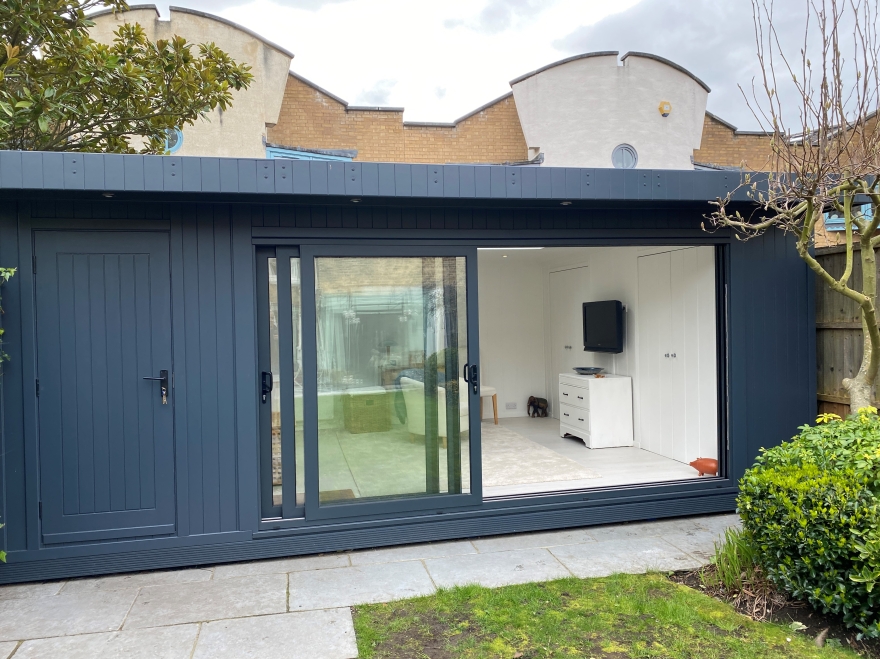

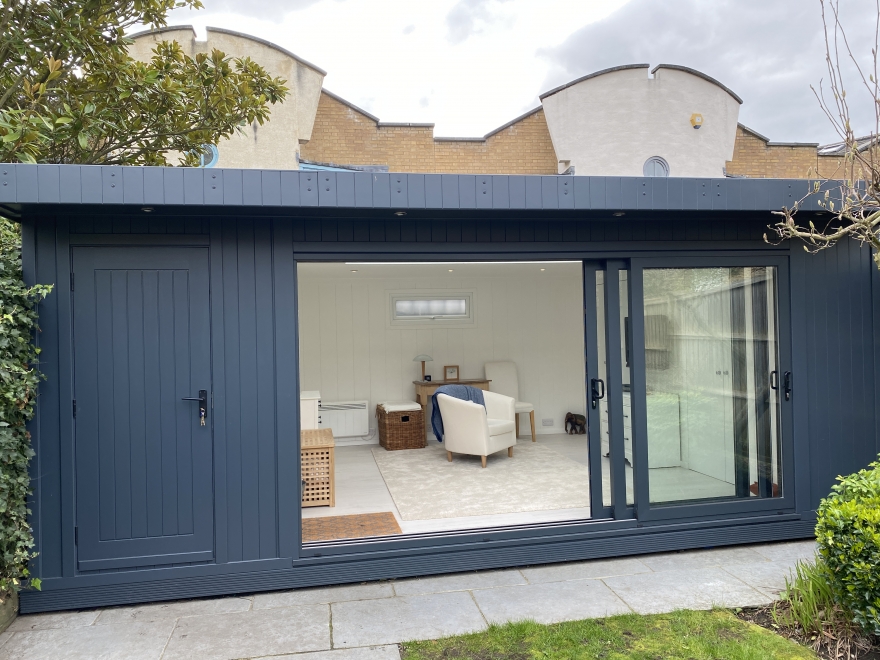

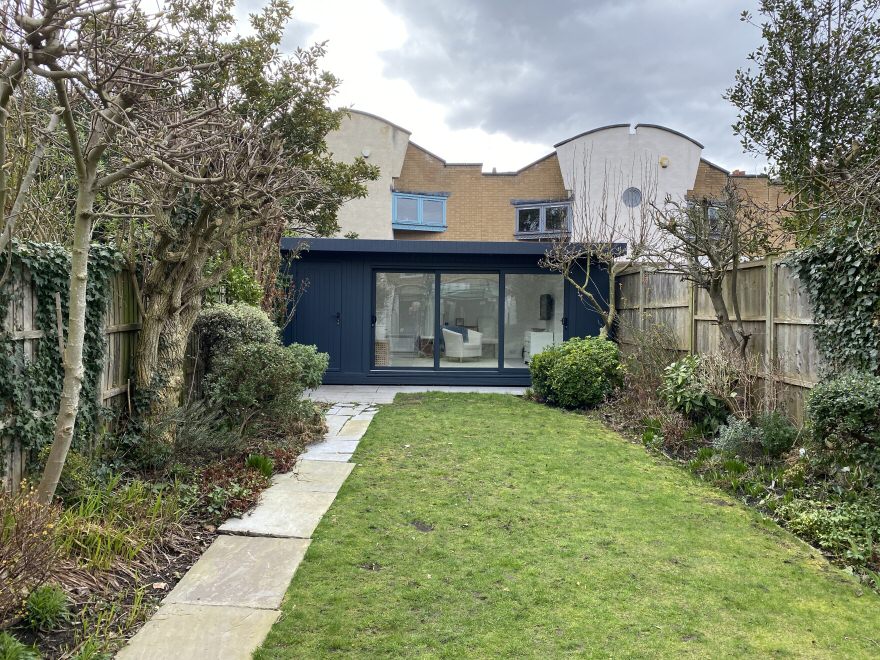

To give the family the space they needed, we designed this garden room to be as wide as possible and build right up to their garden boundaries. In this instance, using tri-sliding doors instead of a bi-fold option worked well. The customers still have a wide opening door, without compromising on the panoramic view from the inside.

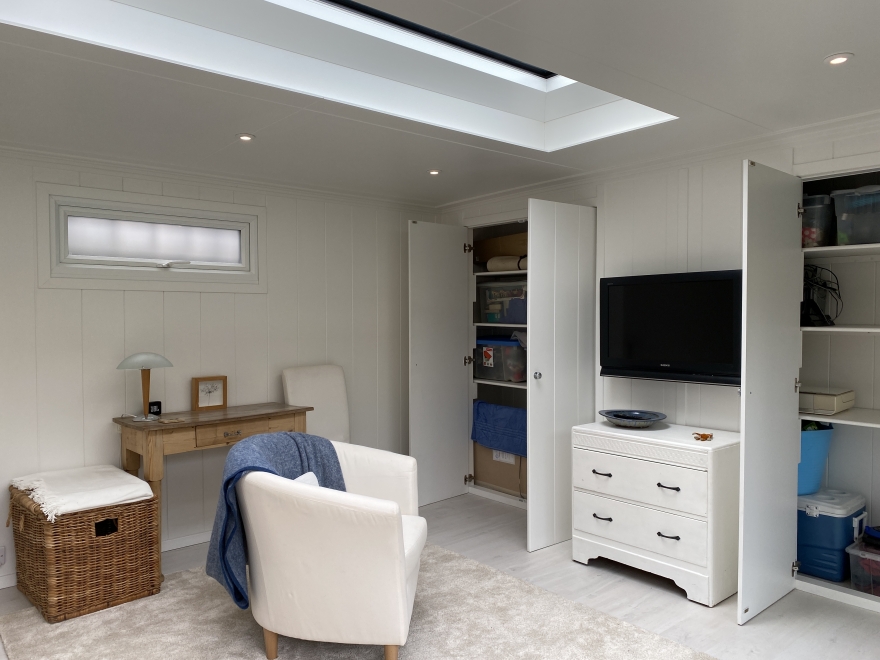

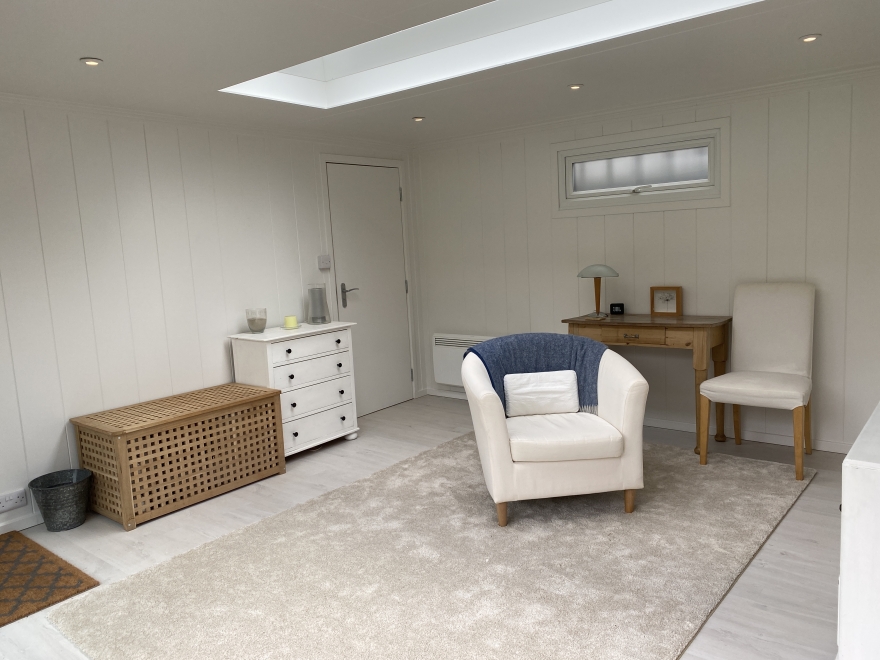

The main room includes an Em-Glaze rooflight which, despite being almost flat, floods the room with natural light. The family is always looking for more storage, so we incorporated solutions in the main room disguised with the same cladding used for the internal walls.

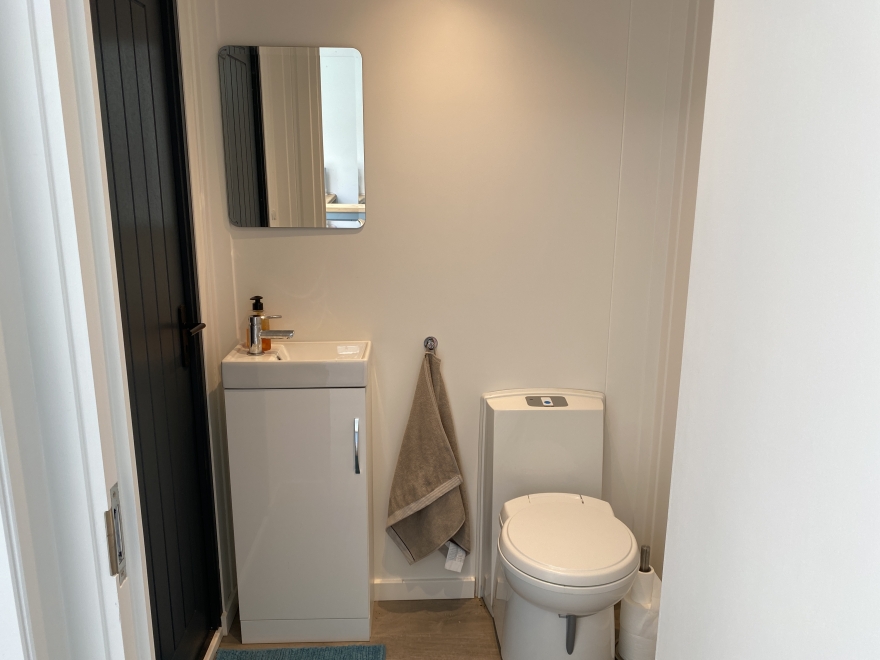

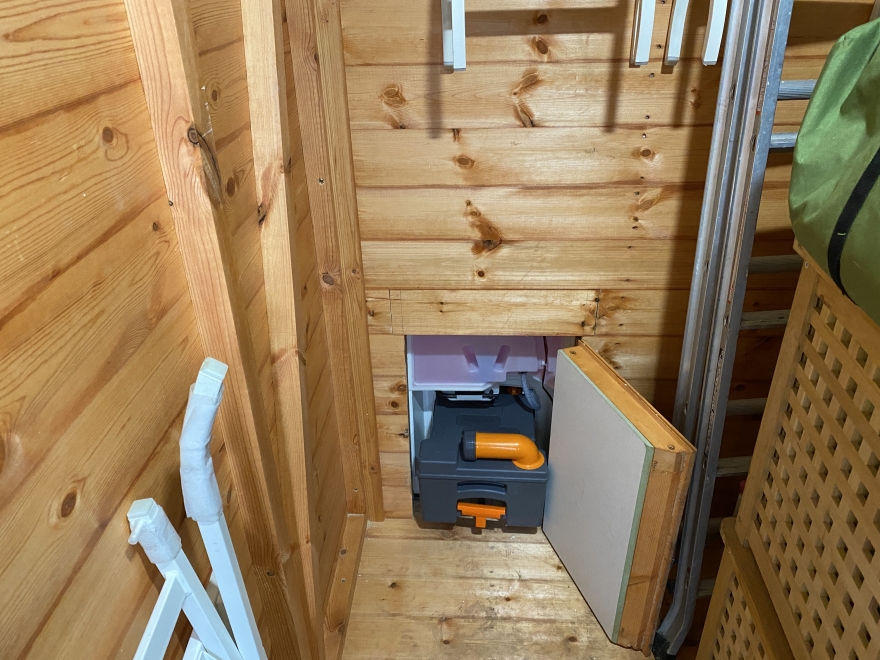

The cassette toilet is not plumbed into main works which is much more cost-effective and the perfect solution when plumbing may be an issue. The cassette point is accessed in the storeroom making it easy for the family to empty when needed.

This entire project, including clearance & installation, had to come through the house as there was no side access to the property.

The Result

Our clients told us they love this room and it is getting more use than they'd thought.

The storage has been game-changing in organising their house and they were very impressed with the team and communication.

Top marks for the Bakers team.

Package & Features

Contemporary Pent Combination Garden Room
Upgrade to 3.6m Wide (1.9m height clearance) Tri-sliding Aluminium Doors RAL 7016

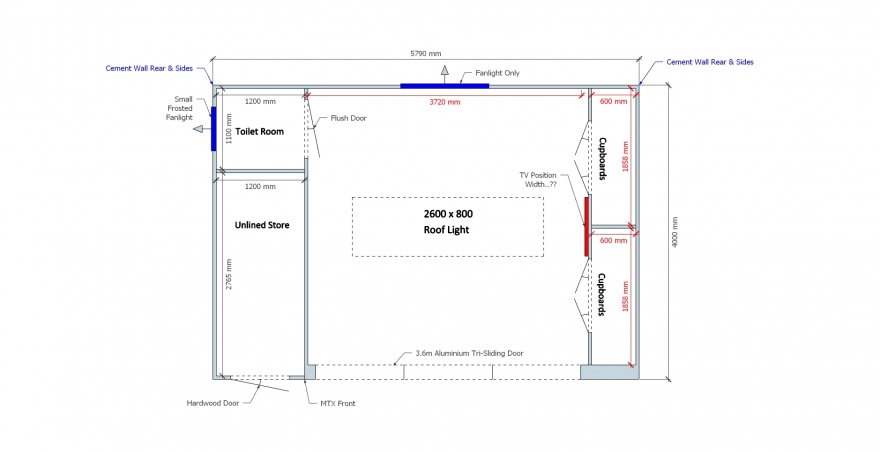

5790mm x 4000mm (4590mm + 1200mm) keeping under 2.5m planning rule
Base Coat Preservative, On-site Installation, Toughened Double Glazing
Insulated Floor
Laminated Flooring - charlotte oak white
MDF Painted Internals Upgrade, Trimless v-200 Walls and v-1200 Ceiling Painted in 'Timeless'
1.2m x 4m Unlined store section with TGV or Hardwood door
1.2m x 1.1m Lined & Insulated Room with Flush Door
Fit Hatch and Transformer for Cassette Toilet (Cassette Toilet Supplied by Others)
4m Unlined Partition Wall Divided into 2 sections with 2 Sets of 1m Hidden Doors
Painted externals (as our terms and conditions) RAL 7016

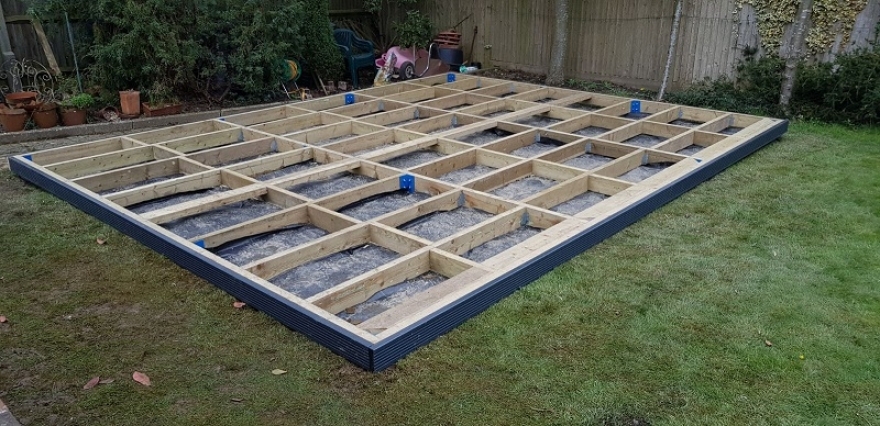

Steel & Timber framed base

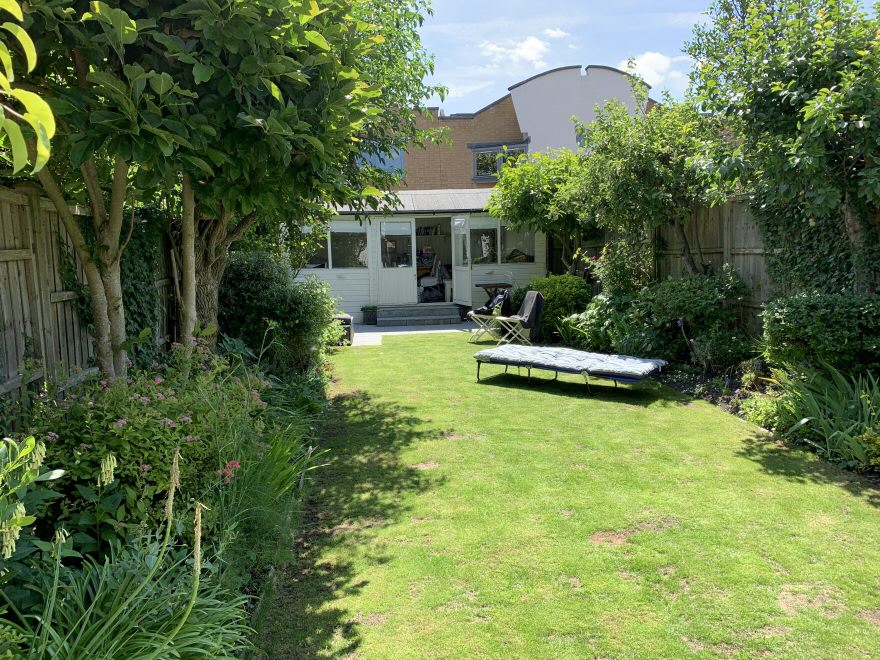

Dismantle and Removal of Old Building Plus Ground Soil Clearance (Through the House)
Electrics & Communications
Firestone EPDM Roof & Rear Height Package.
Zero Maintenance Cement Wall to Rear & Both Sides
Upgrade to (MTX) External Cladding,V100
Medite Tricoya Extreme (MTX) Trim pack
Upgrade to UPVC windows in RAL 7016 Anthracite smooth 1x Fanlight
0.8m x 2.6m Em-Glaze Flat Glass Roof Light (Fixed Sideways)
